Trimatis pastato modeliavimas ir šilumos apkrovos skaičiavimai.
Programinė įranga, skirta trimačiam pastatų modeliavimui bei kompiuterizuotiems atskirų patalpų šilumos apkrovos skaičiavimams
Programa skaičiuoja (priklauso nuo jos versijos):
šilumos perdavimo koeficientus sienoms, grindims, stogams ir plokštiems stogams;
atskirų patalpų šilumos nuostolius;
viso pastato šilumos nuostolius;

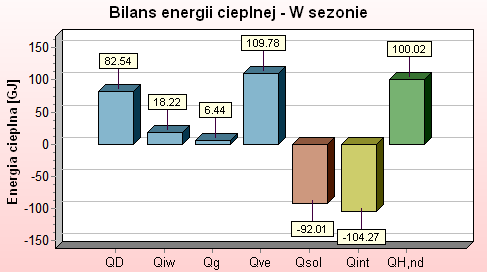

šilumos balansą daugiabučio namo šildymo laikotarpiui;
energinio naudingumo sertifikatą;
metinį energijos suvartojimą;
parenka radiatorius (iš beveik 55 000 variantų).
A program supporting the calculation of the design heat load of rooms, determining the seasonal demand for thermal energy according to the new standards PN-EN 12831, PN-EN ISO 13370 and PN-EN ISO 13790, and for the creation of Energy Certificates. The program also performs hygrothermal analysis of homogeneous and heterogeneous building partitions according to PN-EN ISO 13788.
Program with a built-in mechanism for importing a building model from Autodesk® Revit® 2016 - 2018.
The Audytor HL 7.0 Pro program can be launched with the Audytor HL 6.9 Pro license number.
License owner of the Audytor HL 6.9 Pro program are welcome to download the newer version of the program.
licencji na program #FirmName# OZC 6.9 Pro zapraszamy bezpośrednio do pobrania nowszej wersji programu.
Building 3D modelling and heat load calculations.
Software designed for 3D computer modelling of buildings, as well as for computer aided calculations of heat load of individual rooms.

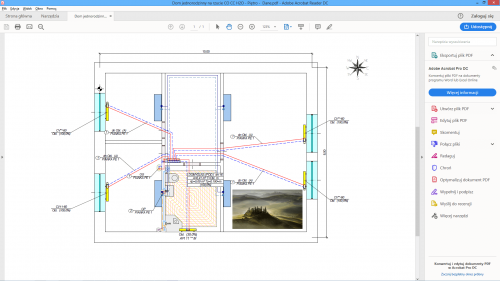

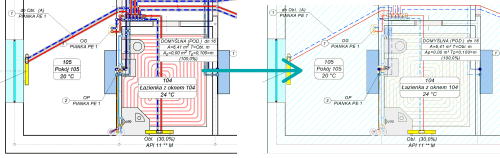

The program has been equipped with the latest cooperation module with DWG and DXF files.
It allows among others:
The function allows you to import a building model from Revit 2016 - 2020. Revit has the ability to export a building model to the gbXML format. In order for the gbXML file to be properly adapted to the Audytor HL, you should use Audytor gbXML - the Revit plugin. Depending on the amount of data entered in Revit, the model may be almost full after the transfer. In the Audytor HL, only the data on the functions of rooms and the grouping of rooms can be supplemented. The imported building model can be verified using a three-dimensional preview.

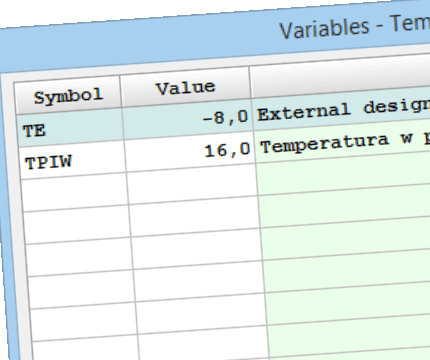

|7.0 Pro||7.0 Basic||6.9 Pro||6.9 Basic|
|Import and export of drawings in DWG 2018 format|
|Import of the building model from Revit 2016 - 2020|
|Possibility to add your own climate data|
|Graphic creation of a building model|
|Determining building energy performance certificates according to the methodology in Journal Of Laws of 18 March 2015. Item 376 - calculation method|
|Module supporting the initial filling in of the Central register of energy performance of buildings form|
|Heat transfer coefficient U for windows and door according to the standard PN-EN ISO 10077-1|
|Determining building energy performance certificates according to the methodology in Journal Of Laws of 2014. Item 888 - calculation method|
|Shading coefficient Fsh according to the standard PN-EN ISO 13790|
|Possibility to add your own linear thermal bridges to the database|
|Surfaces thermal bridges (linear and point) in multilayer partitions|
|Bonding and scaling drawings|
|Preview of the temperature compensation factor for homogeneous materials|
|The internal unit heat capacity of the building is calculated based on a building structure|
|The ability to define which groups of rooms are not to be taken into account when calculating the cost sharing factors|
|Defining hygenic requirements for your own types of rooms|
|The ability to define the default LENI value for lighting|
|Creates a set of building materials in the building construction|
|Backup system of data files|
|Possibility to include a suspended ceiling in the thermal calculations of rooms|
|Creates a set of building components in the building construction|
|Creates a raport with a set of materials (building materials, building components, carpentry, radiators, manufacturers)|
|Heat load PN-EN 12831|
|Cooperation with programs from the SET family|
|Energy Performance Certificate according to the methodology from 2008|
|Energy use - cooling PN-EN ISO 13790|
|Heat transfer coefficient PN-EN ISO 6946|
|Heat transfer through the ground PN-EN ISO 13370|
|The system default data inheritance|
|Correctness check of the model|

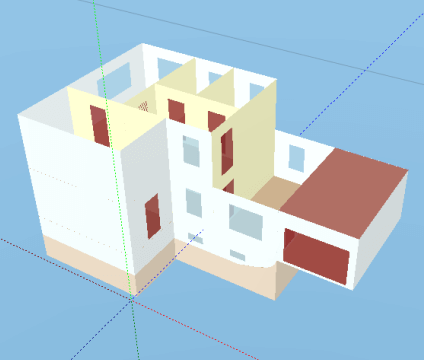

|Three-dimensional preview of the imported building model|
|Moisture analysis of the building partitions – calculator of temperature distribution|
|Moisture analysis of the building partitions calculator of temperature distribution and vapor pressure|
|Moisture analysis of the building partitions - PN-EN ISO 13788|
|Heat load PN-B-03406 (an obsolete standard)|
AUDYTOR HL 6.9 Pro can now load building models in gbXML format from Autodesk Revit!
mechanism for checking the correctness of the loaded building model and supplementing the data necessary to perform thermal calculations.
The calculation methodologies given in current standards and regulations are in many cases very complicated, often containing a lot of insignificant details, and are also full of errors. The many years of experience of our company and the software development team (the core of the company is made up of employees and graduates of the Institute of Heating and Ventilation at the Warsaw University of Technology) enabled the development of a program that on the one hand allows for thermal calculations in accordance with applicable regulations, on the other frees designers from the need for in-depth study often unclear regulations.
Our many years of experience have allowed us to eliminate many errors occurring in the regulations and to introduce additional extensions of calculation methods that increase the flexibility of the program.
The solutions used in the program (data inheritance system) make that despite complicated computational methods and a huge amount of information necessary to enter in order to perform calculations, the time necessary to prepare a project is not too long.
We have also equipped our program with an extensive error diagnosis system and interpretation of the results obtained.
All this combined with the intuitive and transparent data entry process means that the program is able to guide the designer through the calculations process.
To meet our clients' expectations and market needs, the Audytor HL program is constantly updated by us and adapted to current changes in regulations.

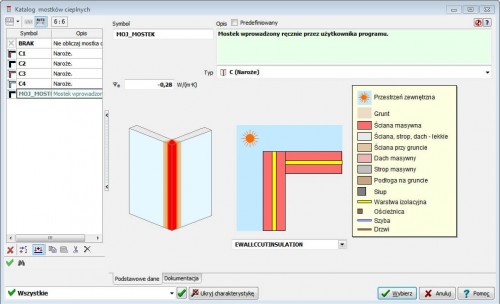

The program is equipped with a thermal bridges catalog according to PN-EN ISO 14683. This catalogue can be supplemented by user with additional thermal bridges.
HL programs (from version 6.0), and CH (from 4.0) are equipped with the function of Graphic creation of a building model. This function gives you the opportunity to draw a building model. To simplify the action of drawing, you can load a drawing base into the program. The file being loaded can come from an external program for creating technical drawings (eg DWG), or from a scanned drawing (eg JPG). The scanned drawing can be divided into several files. Drawings scanned into several files usually do not keep the scale precisely enough. They can also be rotated relative to each other by a small number of degrees.

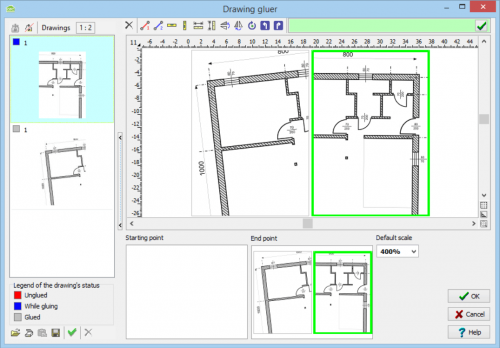

Drawing bonding allows you to quickly scale multiple scanned drawings (in different sizes and rotated) and bond them with one another.
The calculation procedure has added the option of skipping selected groups of rooms when determining the coefficients for cost sharing.
The program is equipped with the option to impose the LENI value for the same lighting for all rooms in the building, if it was calculated by the lighting designer.
The program has a mechanism that automatically creates a set of project backups (up to 8 files).
Data files are backed up every time data is saved, with the new files overwriting the older files so that at least one copy of the file from each stage of the project work is always kept.
This function will allow you to recover the project file even if its last versions are overwritten or damaged.
The program allows to skip the space above the suspended ceiling during the thermal calculations of the room. This space will not be included in the internal volume.
After calculating the heat load, the results can be downloaded from CH family programs, eg Audytor CH. CH programs are used to graphically support the design of installations and to regulate existing central heating and chilled water installations. On the basis of the drawing of the installation and the devices selected by the user, the program selects radiators, pipe diameters, fittings and pre-settings of valves, pumps, gives total pressure loss in the installation etc.
After 3D computer models of buildings have been created, designers can perform correctness check of entered building partitions.
Paprasta naudoti trimačio projekto redagavimo programa padeda projektuotojams greitai ir efektyviai suvesti duomenis.
Kadangi vartotojai gali suvesti pagrindinius pastato brėžinius, jie gali brėžinius papildyti sienomis, langais, durimis ir grindimis be tikslaus šių komponentų matmenų pateikimo rankiniu būdu. Pagrindinius pastato brėžinius galima importuoti iš DWG failų, rastrų arba tiesiogiai iš skenavimo įrenginių.
Sukūrę trimačius kompiuterizuotus pastatų modelius, projektuotojai gali atlikti įvestų pastatų pertvarų tikslumo patikrą.
Duomenų paveldėjimo ir numatytųjų duomenų sąvokos padeda vartotojams sutaupyti laiko ir reikalauja mažiau jų pastangų suvedant atskirus pastato komponentus.
Jau projektuodami pastatus, projektuotojai gali įvertinti reikiamus šilumos sistemų radiatorių matmenis.
Remdamiesi išsamiomis medžiagų apžvalgomis, pastato pertvaromis ir pasirinktais radiatoriais, projektuotojai gali parengti techninius projektų dokumentus.
The program runs under MS Windows (7, 8, 8.1, 10) 32bit and 64 bit.
The minimum hardware:
Vertical resolution requirements for the screen:
- minimum - 768 points,
- sufficient for comfortable work - 900 points,
- the most convenient - 1080 points.
Requirements for system font settings:
- Windows Vista, 7, 8 - fonts "100% smaller",
- Windows XP - "normal" fonts.
The computer should have a graphics card that supports OpenGL technology in the version:
- minimum 2.0,
- sufficient for comfortable work: 3.3 and higher.
How can I check which graphics card model is on my computer?
- Windows Vista, 7, 8: Control Panel/System/Device Manager/Graphics Cards,
- Windows XP: Control Panel/System/Hardware/Device Manager/Graphics Cards.
Not recommended graphics cards that do not support OpenGL 2.0 (according to the manufacturer's data), on which the 3D editor will not work:
- ATI Rage
- Original "ATI Radeon", jak i Radeon DDR, Radeon 7000, Radeon VE, LE,
- Mobility Radeon 7500, 9000
- Radeon 8500, 9000, 9200 and 9250.
- Riva, Riva TNT 1 i 2, Vanta,
- GeForce256, GeForce2, GeForce3, GeForce4, GeForce FX
- Quadro NVS (50, 100, 200, 210S, 280)
- Extreme Graphics (1-2)
- GMA 900, 950
- GMA 3100, GMA 3150
- HD Graphics (Rok 2010)
- HD Graphics (CPU Sandy Bridge) (Rok 2011)
- HD Graphics 2000
- HD Graphics 2500
- HD Graphics 3000
- HD Graphics P3000
and most of the integrated ones
OpenGL 2.0 support cards (sufficient
- Mobility Radeon 9600, 9700
- Radeon X300, X550, X600
- Radeon X700–X850.
- Radeon X1300–X1950
- GeForce 6 (GeForce 6xxx)
- GeForce 7 (GeForce 7xxx)
- Quadro FX Series
- Quadro FX (x300) Series
- Quadro FX (x400) Series
- Quadro FX (x500) Series
- Quadro NVS 285
- GMA 500
- GMA 600
- GMA 3000
- GMA 3600
- GMA 3650
- GMA X3000 - X3500
- GMA 4500
- GMA X4500
- GMA X4500HD
- GMA 4500MHD
OpenGL 3.3 support cards (recommended)
- Radeon HD 2000 series.
- Radeon HD 3450-3650, Radeon Mobility HD 2000 and 3000 series.
- Radeon HD 3690-3870.
- Radeon HD 4000 series.
- GeForce 8 (GeForce 8xxx)
- GeForce 9 (GeForce 9xxx)
- GeForce 100 Series
- GeForce 200 Series
- GeForce 300 Series
- Quadro FX (x600) Series
- Quadro FX (x700) Series
- Quadro FX (x800) Series
- Quadro NVS (290 - 300)
- HD Graphics 4000
- HD Graphics P4000
- HD Graphics 4200
- HD Graphics 4400
- HD Graphics 4600
- HD Graphics 5000
- Iris Graphics 5100
- Iris Pro Graphics 5200
- FirePro Workstation
- FirePro Server
OpenGl 4.3 and higher
- Radeon HD 5000 series
- Radeon HD 6000 series
- Radeon HD 7000 series
- Radeon HD 8000 series
- Radeon HD 9000 series
- GeForce 400 Series
- GeForce 500 Series
- GeForce 600 Series
- GeForce 700 Series
- Quadro x000
- Quadro Kxxx Series
- Quadro NVS (310 - 510)
